Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations

Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations

  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
उत्पाद विवरण:
उत्पत्ति के प्लेस: शंघाई, चीन
ब्रांड नाम: Royal Way
प्रमाणन: ISO 9001
मॉडल संख्या: 9'' रबर वाइपर
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 400pcs
मूल्य: USD$8.7/pc
पैकेजिंग विवरण: 40*40*20 सेमी कार्टन पैकिंग
प्रसव के समय: ऑर्डर की मात्रा के अनुसार 7-15 दिन
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन, पेपैल, बैंक हस्तांतरण
आपूर्ति की क्षमता: प्रति सप्ताह 50000 पीसी
संपर्क करें
विस्तृत उत्पाद विवरण
प्रोडक्ट का नाम: 9" ड्रिल पाइप वाइपर/मड वाइपर नाम मात्र का आकार: 9 इंच (228.6 मिमी) बाहरी व्यास
सामग्री का प्रकार: हाई-ग्रेड एनबीआर (नाइट्राइल), एचएनबीआर, एफकेएम आंतरिक व्यास (आईडी) रेंज: 2-3/8" से 5-1/2" पाइपों के लिए ठोस (आकार में कटौती) या पूर्व-कट
मोटाई: 18 मिमी इकाई का वज़न: 1.1 किग्रा
कठोरता (ड्यूरोमीटर): 70 - 85 तट ए तन्यता ताकत: ≥15 एमपीए
तोड़ने पर बढ़ावा: ≥300% आंसू प्रतिरोध: हेवी-ड्यूटी स्ट्रिपिंग के लिए अतिरिक्त उच्च आंसू शक्ति
रंग: काला तापमान की रेंज: -40°C से +121°C (-40°F से +250°F)
रासायनिक प्रतिरोध: तेल-आधारित मिट्टी (ओबीएम), जल-आधारित मिट्टी (डब्ल्यूबीएम), और कच्चे तेल के प्रति प्रतिरोधी द्रव अनुकूलता: ड्रिलिंग तरल पदार्थ, स्नेहक और हाइड्रोलिक तेल के साथ संगत
सुदृढीकरण विकल्प: आंतरिक कपड़े या स्टील रिंग सुदृढीकरण के साथ उपलब्ध है विनिर्माण मानक: आईएसओ 9001 गुणवत्ता प्रणाली
मूल: चीन में निर्मित (सील निर्माता प्रत्यक्ष)
प्रमुखता देना:

9-inch NBR rubber wiper

,

casing tubing rubber wiper

,

custom NBR rubber wiper

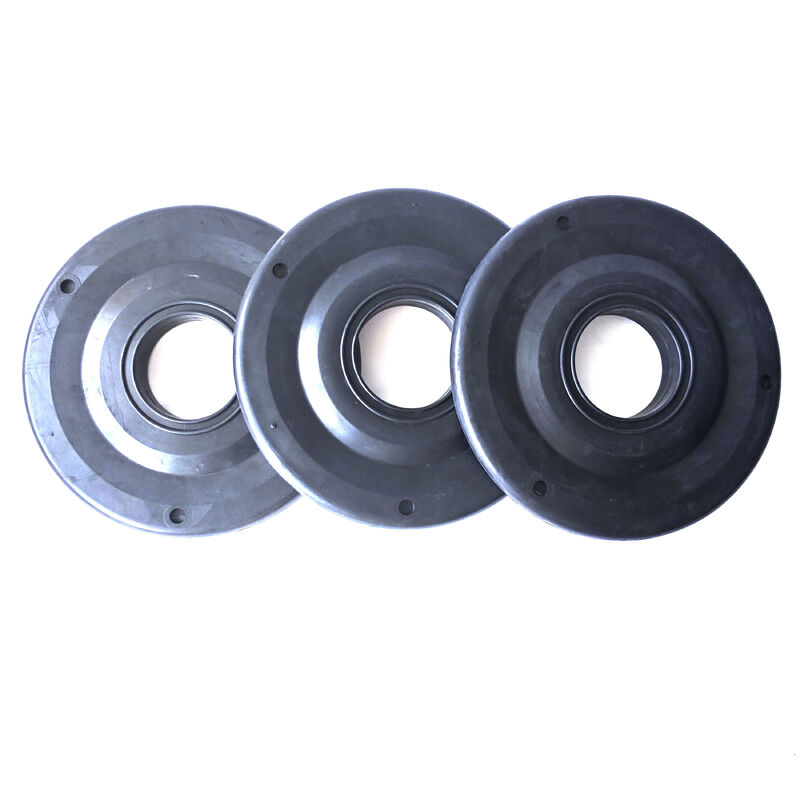

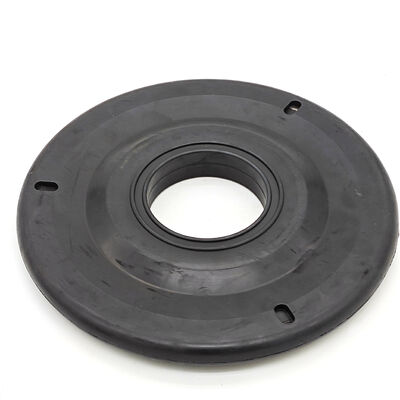

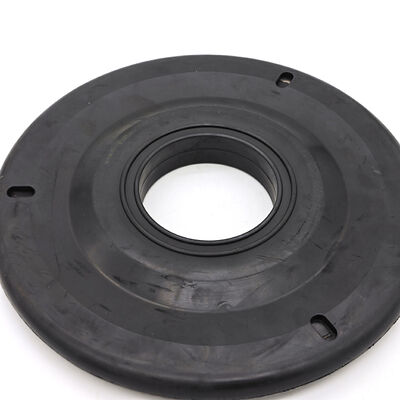

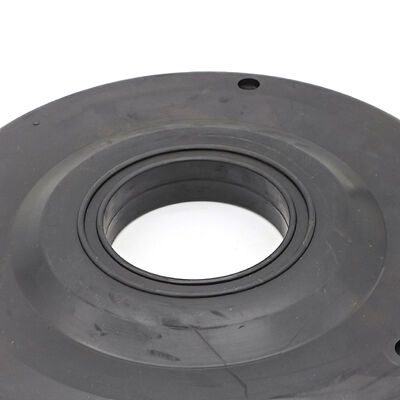

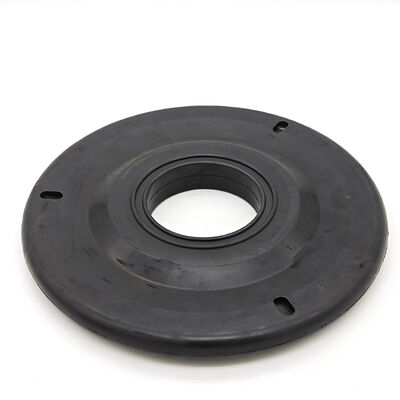

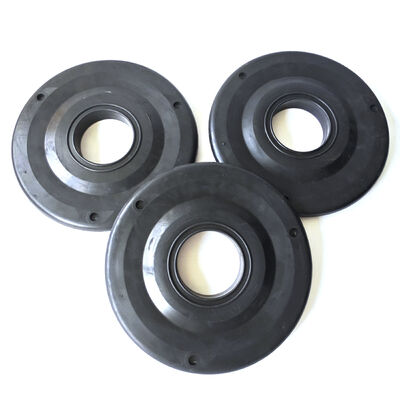

9 Inch Drill Pipe Rubber Wiper for Oilfield Drilling Operations





Product Overview


Our Premium 9-inch NBR Rubber Wiper is engineered specifically for the demanding environments of casing and tubing operations. Manufactured from high-grade Nitrile Butadiene Rubber (NBR), this pipe wiper provides an exceptional seal to strip drilling mud, oil, and water-based fluids from the pipe exterior as it is pulled from the wellbore.

As a specialized oilfield seal manufacturer, we ensure that our wipers offer the perfect balance of flexibility and toughness, maintaining a clean rig floor and protecting your equipment from corrosive fluids.



Key feature and benefits


  • High-Grade NBR Compound: Superior resistance to petroleum-based oils, crude, and hydraulic fluids.

  • Precision Stripping Action: Designed to fit snugly around casing and tubing, ensuring zero fluid carry-over.

  • Reinforced Structural Integrity: Available with internal steel rings to prevent "dishing" or deformation under high-speed pulling.

  • Universal Compatibility: Our 9" (228.6mm) OD design fits standard wiper bowls and master bushings used in global drilling operations.

  • Eco-Friendly Operation: Minimizes fluid spills, assisting rigs in meeting environmental "zero discharge" requirements.

Technical Specifications


Parameter Standard Specification
Product Type Circular Pipe Wiper / Mud Stripper
Nominal Outer Diameter 9 Inches (228.6 mm)
Inner Diameter (ID) Options Solid or Custom-cut (2-3/8", 2-7/8", 3-1/2", 4-1/2", 5", up to 7")
Base Material High-Nitrile NBR (Nitrile Butadiene Rubber)
Working Temperature Range -30°C to +120°C (-22°F to +248°F)
Working Pressure Designed for Atmospheric Stripping (Gravity Flow)
Hardness (Durometer) 70 - 85 Shore A (Adjustable based on application)
Tensile Strength ≥ 16 MPa
Elongation at Break ≥ 350%
Fluid Resistance Excellent for OBM, WBM, and Crude Oil





Appliactions


The 9" Rubber Pipe Wiper is widely used in both onshore and offshore drilling environments, including:

  • Drilling Rigs: Cleaning drill strings during tripping operations.

  • Workover Units: Managing fluids during well maintenance and completion.

  • Casing Operations: Wiping casing walls to prevent fluid migration.

  • Environmental Protection: Essential for "Zero Discharge" rig sites to keep drilling fluids within the well system.



Why choose our rubber wiper?


As a specialized sealing solution manufacturer, we understand the harsh conditions of the oil patch. Our products are:

  1. Chemical Resistant: Built to handle water-based muds (WBM), oil-based muds (OBM), and acidic well conditions.

  2. Customizable: We can adjust the rubber compounding (durometer and elasticity) to meet specific well depths and pressure requirements.

  3. Quality Assured: Every 9 inch mud wiper undergoes rigorous tension and oil-immersion testing before shipment.

  4. Manufacturer Direct: Buying directly from the factory ensures competitive pricing and shorter lead times for global oilfield service companies.

Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 0Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 1Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 2Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 3Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 4
