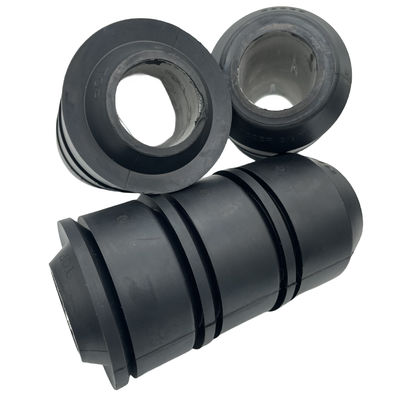

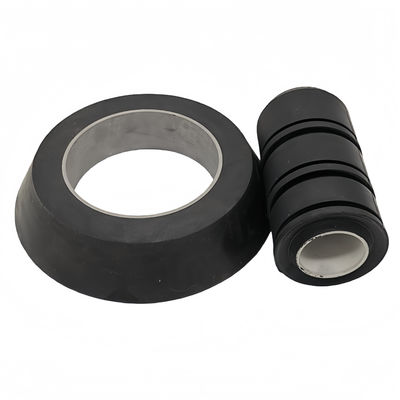

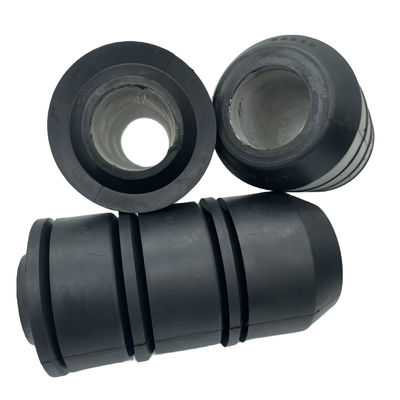

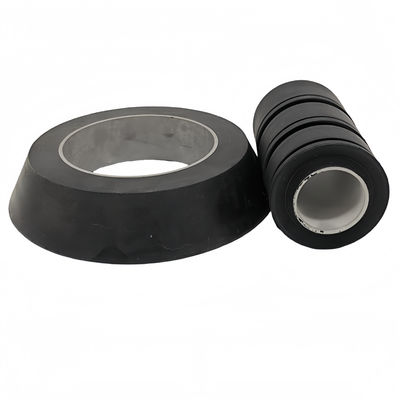

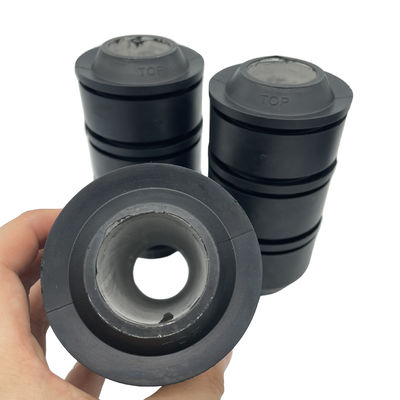

Name: स्टील कोर घर्षण-प्रतिरोधी उच्च-दबाव स्वैब कप तेल क्षेत्रों में डाउनहोल स्वैबिंग के लिए
Brand: Shanghai Qinuo Industry Co., Ltd.
SKU: टीए/आरटीएल
Price: 3.00 USD
Availability: InStock

होम उत्पाद ऑयलफील्ड स्वैब कप

स्टील कोर घर्षण-प्रतिरोधी उच्च-दबाव स्वैब कप तेल क्षेत्रों में डाउनहोल स्वैबिंग के लिए

Steel Core Abrasion-resistant High-pressure Swab Cup for Downhole Swabbing in Oilfields

उत्पाद विवरण:

उत्पत्ति के प्लेस:	शंघाई, चीन
ब्रांड नाम:	Royal Way
प्रमाणन:	ISO 9001
मॉडल संख्या:	टीए/आरटीएल

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	500 पीसी
मूल्य:	1~5usd/pcs
पैकेजिंग विवरण:	404040 सेमी कार्टन पैकिंग
प्रसव के समय:	20 दिन
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, एल/सी, पेपैल
आपूर्ति की क्षमता:	प्रति सप्ताह 10000 पीसी

संपर्क करें

विस्तृत उत्पाद विवरण

आकार::	2-3/8, 2-7/8 और 3-1/2 इंच ट्यूबिंग संदर्भ; कप ओडी और बोर का सत्यापन करें	सामग्री::	स्टील कोर के साथ निर्दिष्ट रबर यौगिक; मेन्ड्रेल ड्राइंग द्वारा ज्यामिति
पर्यावरण::	तेल क्षेत्रों में स्वाबिंग ऑपरेशन	रंग:	काला या कस्टम रंग
प्रकार::	टीए/आरटीएल प्रोफ़ाइल संदर्भ; सटीक टूल ड्राइंग की पुष्टि करें	आवेदन क्षेत्र:	मध्यम हल्के भार से स्वाब
प्रभावी लागत:	किफायती और लागत प्रभावी समाधान	रिवाज़:	कार्टन पैकिंग+पैलेट
गारंटी:	कोटेशन के साथ लागू वारंटी शर्तों की पुष्टि करें	दाब मूल्यांकन:	पूर्ण स्वाबिंग उपकरण और कर्तव्य द्वारा परिभाषित; कोई स्टैंडअलोन कप रेटिंग नहीं
प्रतिरोध:	पहनने का प्रदर्शन यौगिक, रेत के संपर्क और ट्यूबिंग की स्थिति पर निर्भर करता है	पैकेट:	कार्टन + प्लास्टिक बैग
प्रमुखता देना:	घर्षण-प्रतिरोधी स्वैब कप , उच्च-दबाव डाउनहोल स्वैबिंग टूल , इस्पात कोर तेल क्षेत्र के स्वैब कप

Steel-Core Swab Cup Maintenance: Wear Conditions and Replacement Fit

Royal Way supplies steel-core swab cup enquiries for downhole fluid lifting. Review the rubber compound and cup profile for the tubing condition, sand exposure and operating fluid. Confirm core dimensions and mandrel fit separately. A cup has no independent 10,000 psi working-pressure rating.

The existing catalogue introduces TA, V and MV profile references with different support and lip arrangements. Confirm the exact steel-core design and permitted tool duty. A steel core does not establish universal load, temperature or pressure capability.

Nominal tubing references include 2 3/8, 2 7/8, 3 1/2 and 4 1/2 inches. Match cup OD and core bore to the tubing inside diameter and mandrel drawing. Custom enquiries require agreed dimensions, compound, hardness and inspection criteria.

स्टील कोर घर्षण-प्रतिरोधी उच्च-दबाव स्वैब कप तेल क्षेत्रों में डाउनहोल स्वैबिंग के लिए

Steel-Core Swab Cup Wear Review: Record Tubing and Sand Conditions

For a replacement enquiry following wear, provide photographs of the lip and core seating area together with the approved new-part drawing. Include tubing inside diameter and condition, sand concentration if known, fluid composition and temperatures. Wear resistance depends on the compound and operating contact, not the steel core alone.

Do not use a worn or swollen cup as the sole dimensional reference. Confirm the original cup profile, core bore and height, mandrel arrangement and rubber grade. Follow the tool maker’s inspection criteria before reuse or replacement.

Original nominal tubing reference (inch)	Core and Description	Catalogue cup OD (inch)	Catalogue cup ID (inch)
2-3/8" (2")	Aluminum Core Swab Cup	1.992"	1.120"
2-3/8" (2")	Steel Core Swab Cup	1.992"	1.120"
2-7/8" (2-1/2")	Aluminum Core Swab Cup	2.431"	1.370"
2-7/8" (2-1/2")	Steel Core Swab Cup	2.431"	1.370"
3-1/2" (3")	Aluminum Core Swab Cup	2.985"	1.370"
3-1/2" (3")	Steel Core Swab Cup	2.985"	1.370"

Replacement cup enquiries can be discussed from the required profile and approved drawing. Specify the nitrile or other compound grade and actual fluid exposure. Profile references do not imply original-brand manufacture or universal compatibility.

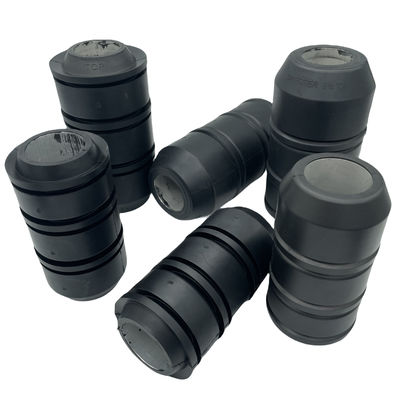

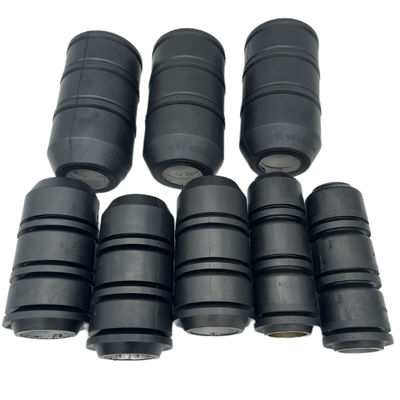

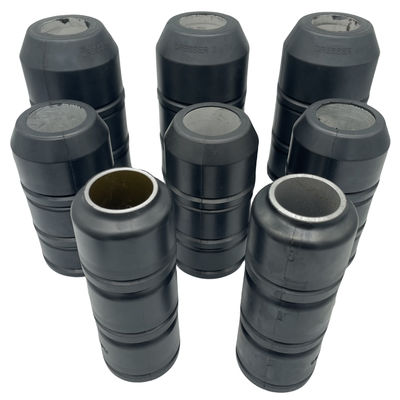

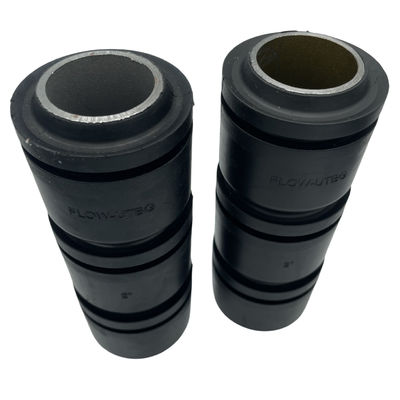

Available types of Swab cups:

TA style

TA is described in the existing range as a medium-load cup around a steel or aluminum bushing. Confirm the particular core material, cup profile and mandrel bore for the selected size. Load suitability and compound performance depend on the approved tool configuration and operating conditions.

V style:

The existing V-series description covers all-rubber lip profiles for sand-bearing fluid enquiries. Cup count, lip behaviour and load limits must follow the tool maker’s instructions. Review the selected compound for fluid, temperature and wear conditions rather than assigning universal chemical resistance.

TUF style:

The TUF-style description refers to an internally reinforced cup profile. Confirm the reinforcement, dimensions and load requirements against the tool drawing. Hot-well or rough-tubing suitability requires review of the actual compound and tubing condition.

NUF style:

The NUF-style description refers to a heavy-load rubber cup with a steel or aluminum bushing arrangement. Specify the exact profile, core material, dimensions and approved tool duty. A heavy-load description does not establish a pressure or lifting-capacity rating.

Part Name	MV Style, TA style, TUF style, NUF style and V style
Environment	oil, gas, gas condensate
Available Material	Compound and core construction by selected cup drawing; review fluid and temperatures

Other relative rubber products:

Packing and shipment:

Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
Air shipment: air port to air port or air port to door.
Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

Quality management and inspection documents:

Shanghai Qinuo supplies oilfield rubber-part enquiries under Royal Way and SHQN. We operate an ISO 9001 quality management system. For swab cups, agree the drawing revision, compound, core material and dimensional inspection requirements. Confirm tooling, production availability and delivery with the quotation.

Mould corner view for the rubber parts:

FAQ:

Q.Why Choose Qinuo industry?

We provide them with one-stop service from R & D to production to satisfy their customization needs.

Confirm the final packing, destination and dispatch schedule with the quotation. Shipping options depend on the order size and route.

Q.What is your advantage?

Has sound and mature supporting supply chain
Lower mold costs
High efficiency of development and design ability and short process time.
Cost effective and good service attitude.
More professional export sales staff who are all know rubber processing very well.

Q.Are you manufacture or trading company?

We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.

Q.What should be checked when replacing a worn steel-core cup?

Compare the replacement with the approved new-part profile, cup OD, core bore, height and seating dimensions. Provide lip-wear and core-area photos with tubing condition and sand exposure, then agree the rubber grade, hardness tolerance and inspection criteria.

Q.Can I get some samples?

Ask about sample availability for the required replacement profile, steel-core geometry and rubber grade. Agree sample quantity, dimensional inspection, price and shipping arrangements with the quotation.

Q.Can you produce OEM products?

Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.

Q.What's the term of payment?

Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T

Q.Can you manage the shipment?

Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
